1800 mosi2 heater,1800 grade Molybdenum Disilicide(MoSi2) heating element, the max.temperature can reach 1850℃,high-quality and high-purity.It can be widely used in such applications as sintering and heat treatment on ceramics, magnet, glass, metallurgy, refractory, etc.We can offer different types of products-----bar type type, W shape, U shape and L type to customers according to their needs .
Features:The geometry of the bending part is accurate;High density, higher conductivity, faster heating, lower power consumption;High purity,1800 grade mosi2 heating elements are especially suitable for high-end dental furnaces and lab electric furnaces .

1800°C grade Molybdenum Disilicide(MoSi2) heating elements,1800 mosi2 heater,moly-d heating elements

1800 W shape mosi2 heating elements

W type 1800°C mosi2 heater are ideal for furnaces with low chamber height, offering longer hot zones that require fewer elements to achieve the desired temperature. This results in reduced energy loss at the cold ends, making them more cost-effective than U type Molybdenum Disilicide heaters.

1800 L shape mosi2 heating elements

L shape (Bent) mosi2 heater are designed for furnaces where electrical connections above the roof are not feasible. Unlike standard elements, the hot zone(or the cold ends) of these elements can be bent at a 90° angle,allowing for efficient multi-row installation on furnace walls. This enables precise power control at different levels while optimizing space within the furnace.

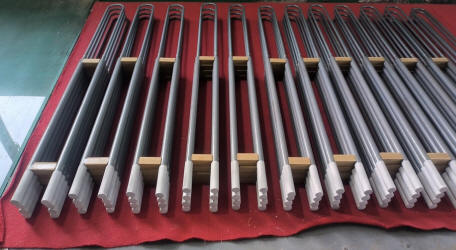

u shape moly heating elements

u type 1800°C moly heating elements is the most commonly used design. The heating zone is welded to terminals that are typically twice the diameter of the heating zone. U MoSi2 heating elements are manufactured to industry-standard resistance values. The same spacing, power ratings, and voltages can be used as with other Molybdenum Disilicide heater.
